On one of my recent shopping trips, I bought an LED light bulb to replace one of the lights that recently failed in my home.

I didn't pay too much attention to the lamp in the store, but once I got back home, I noticed an interesting warning on the side of the lamp packaging. The warning had an icon of 24 hours that was crossed with an asterisk next to it. After a closer inspection, I found a printed warning that said that the light should not be run for more than 10-12 hours a day and that running it for 24 hours straight will void its warranty.

This left me intrigued so I decided to open up the lamp and explore its circuit so I can possibly understand why that warning is there and if we can do something to fix it.

The light bulb uses a chip that I see for the first time in a very interesting circuit and it was very worthwhile to look inside and explore.

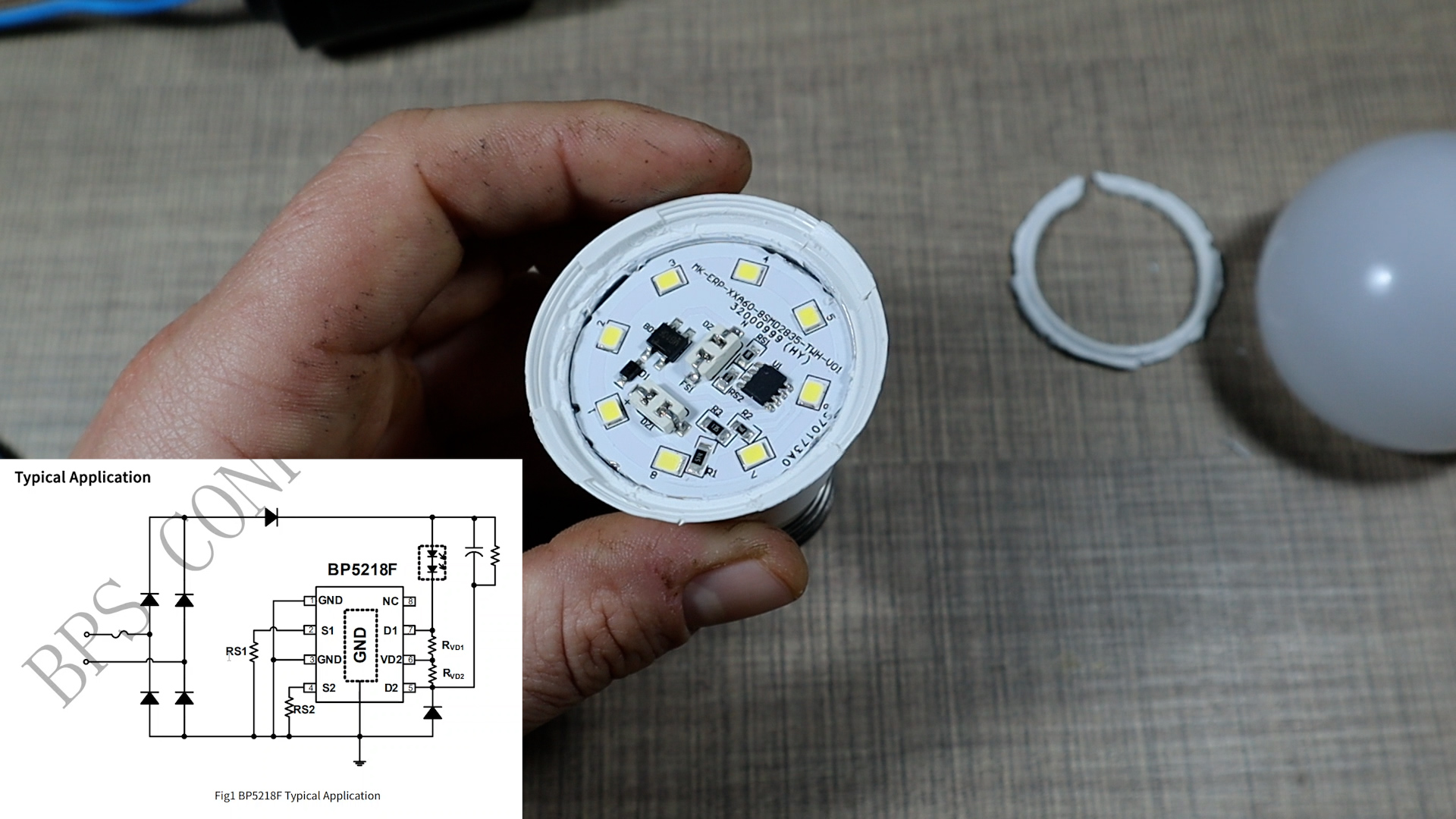

Light bulb PCB with its circuit diagram.

Since I did not have the full datasheet to understand how the resistor values affect the current through the LED in the light bulb, I used another LED light bulb to demonstrate how you can reduce the power consumption of an LED light bulb in a more typical configuration with to resistors in parallel.

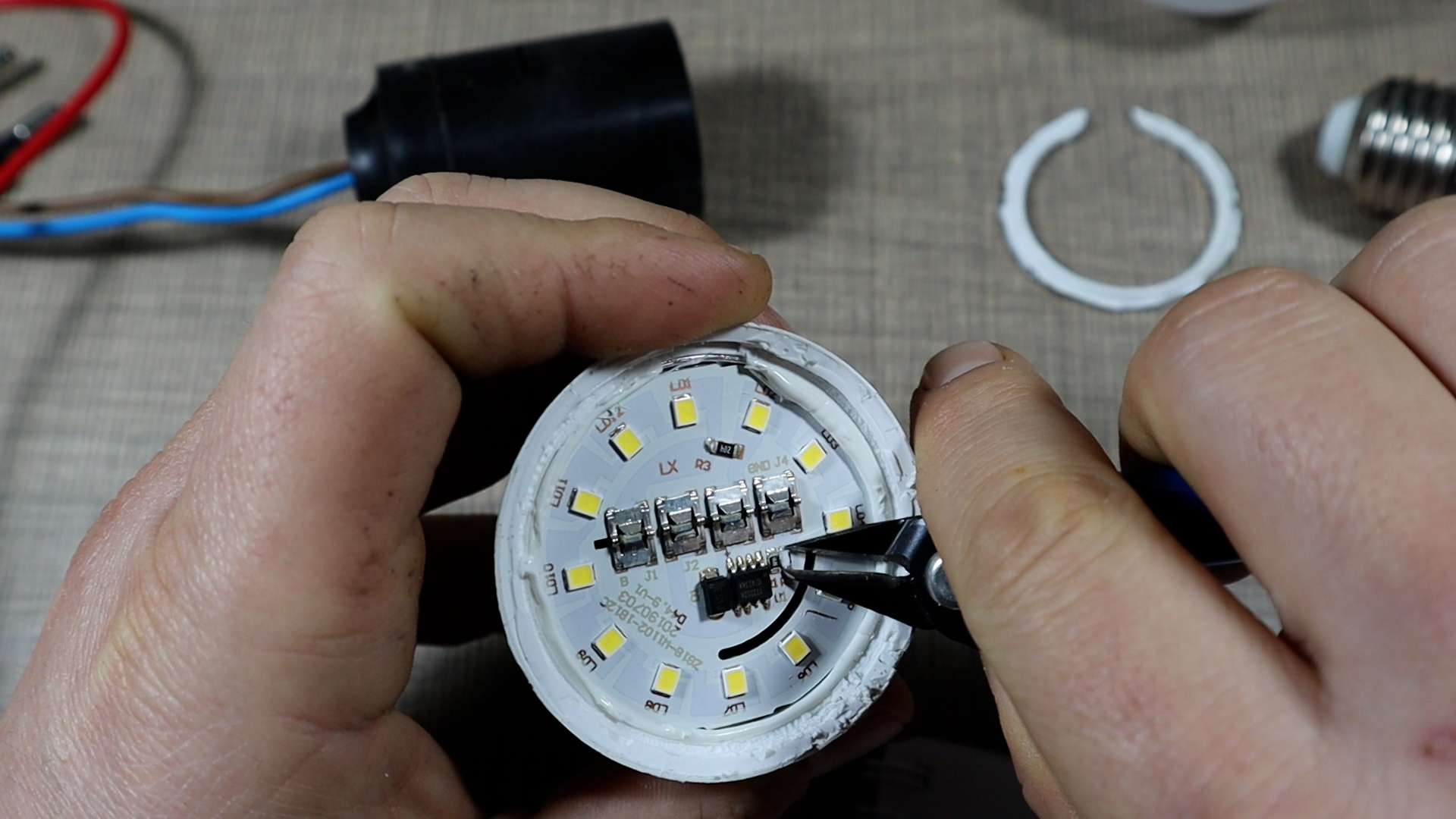

Removing one of the resistors with a pair of snips

With this approach, we've reduced the power consumption of the LED bulb from 11 to just 6 watts and that will make the bulb run for much longer without too much of a loss in light output.

Check out the video above for more details!
